Xcode Integration

Before setting up Xcode integration, first get Periphery working in a terminal, as you will be using the same command via Xcode. Your project may require passing the -destination argument to xcodebuild. This can be done by supplying it as an additional argument, e.g. periphery scan ... -- -destination "generic/platform=iOS Simulator".

Step 1: Create an Aggregate Target

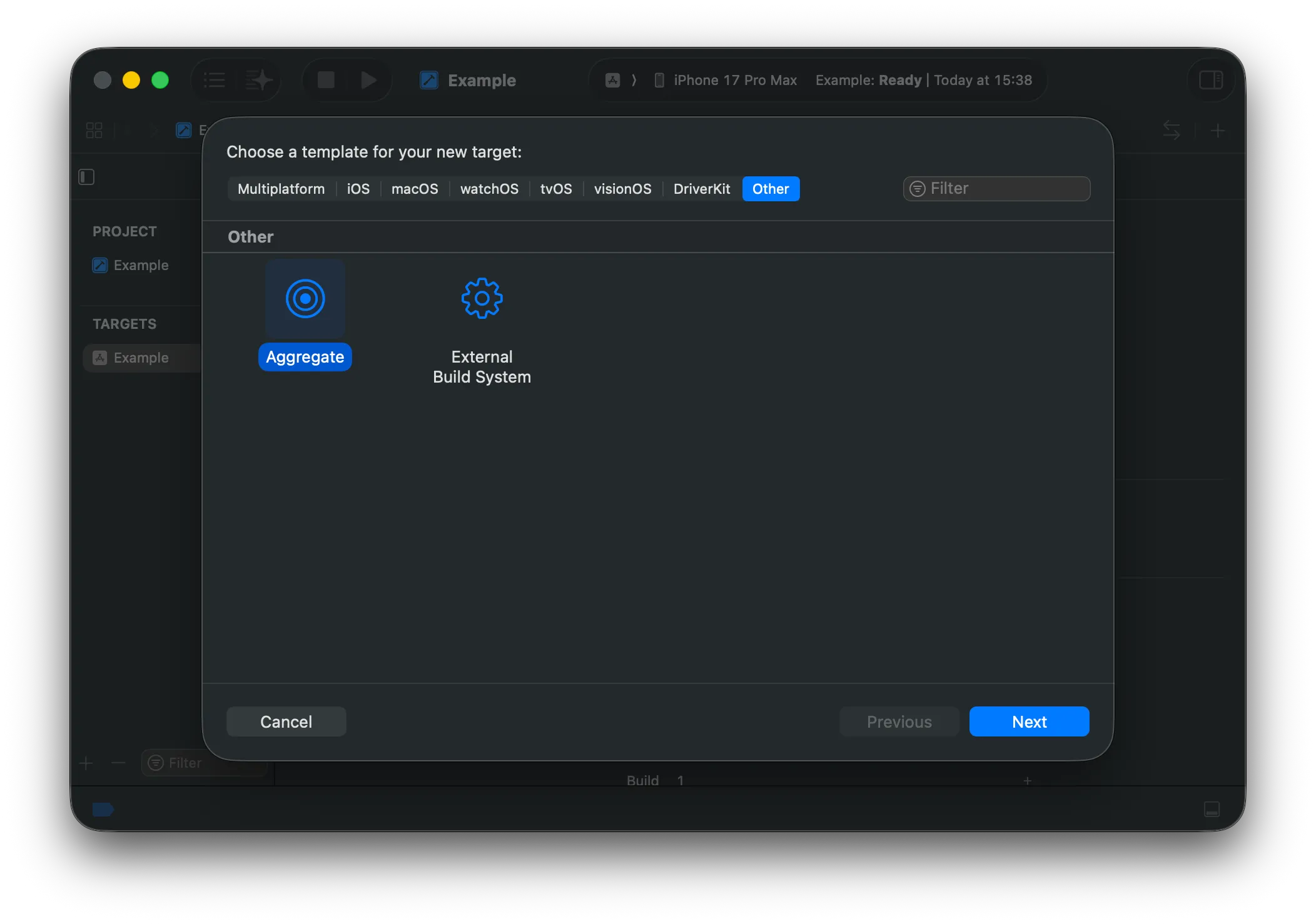

Select your project in the Project Navigator and click the + button at the bottom left of the Targets section. Select Other and choose Aggregate. Hit Next.

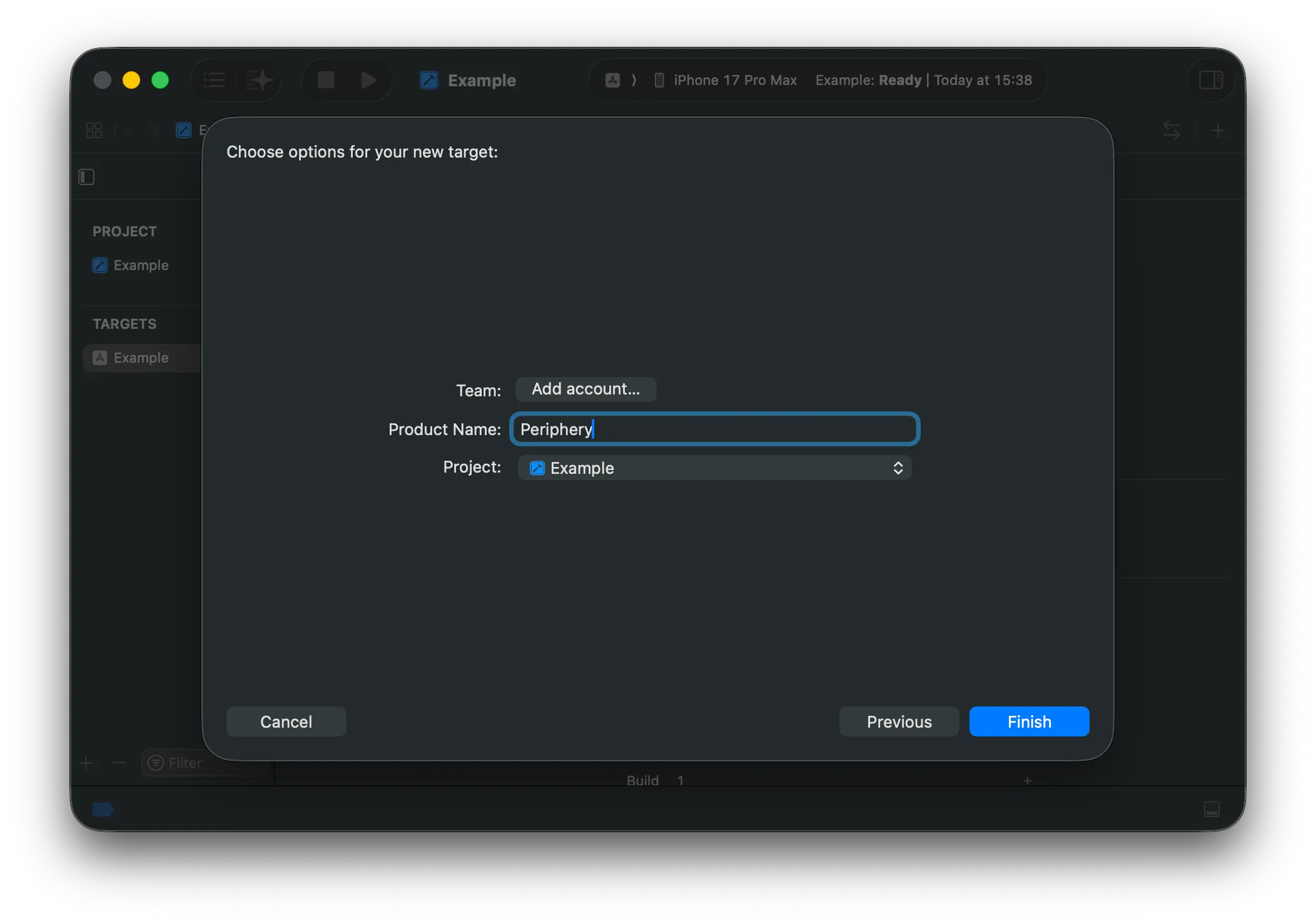

Choose a name for the new target, e.g., “Periphery” or “Unused Code”.

Step 2: Add a Run Script Build Phase

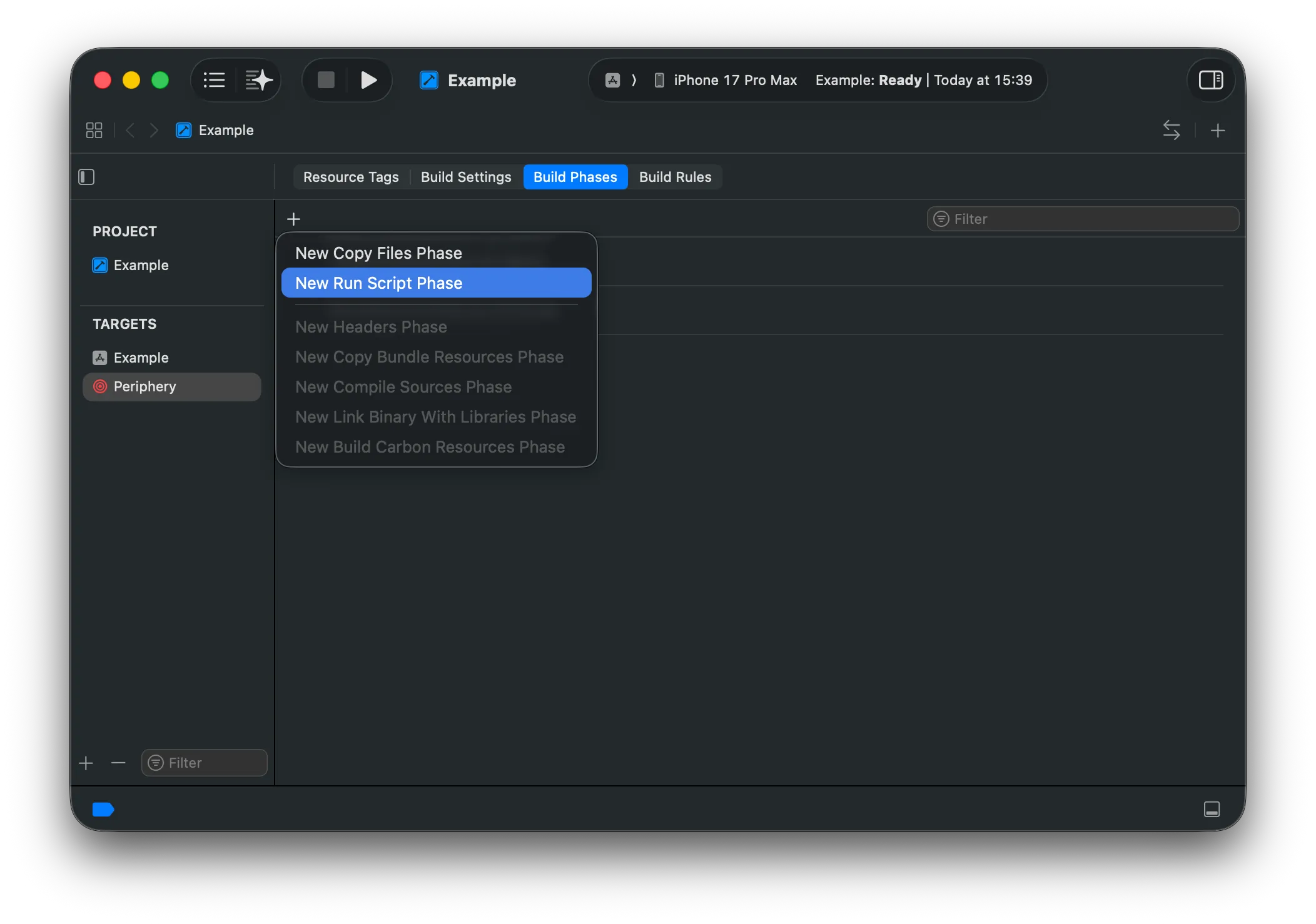

In the Build Phases section, click the + button to add a new Run Script phase.

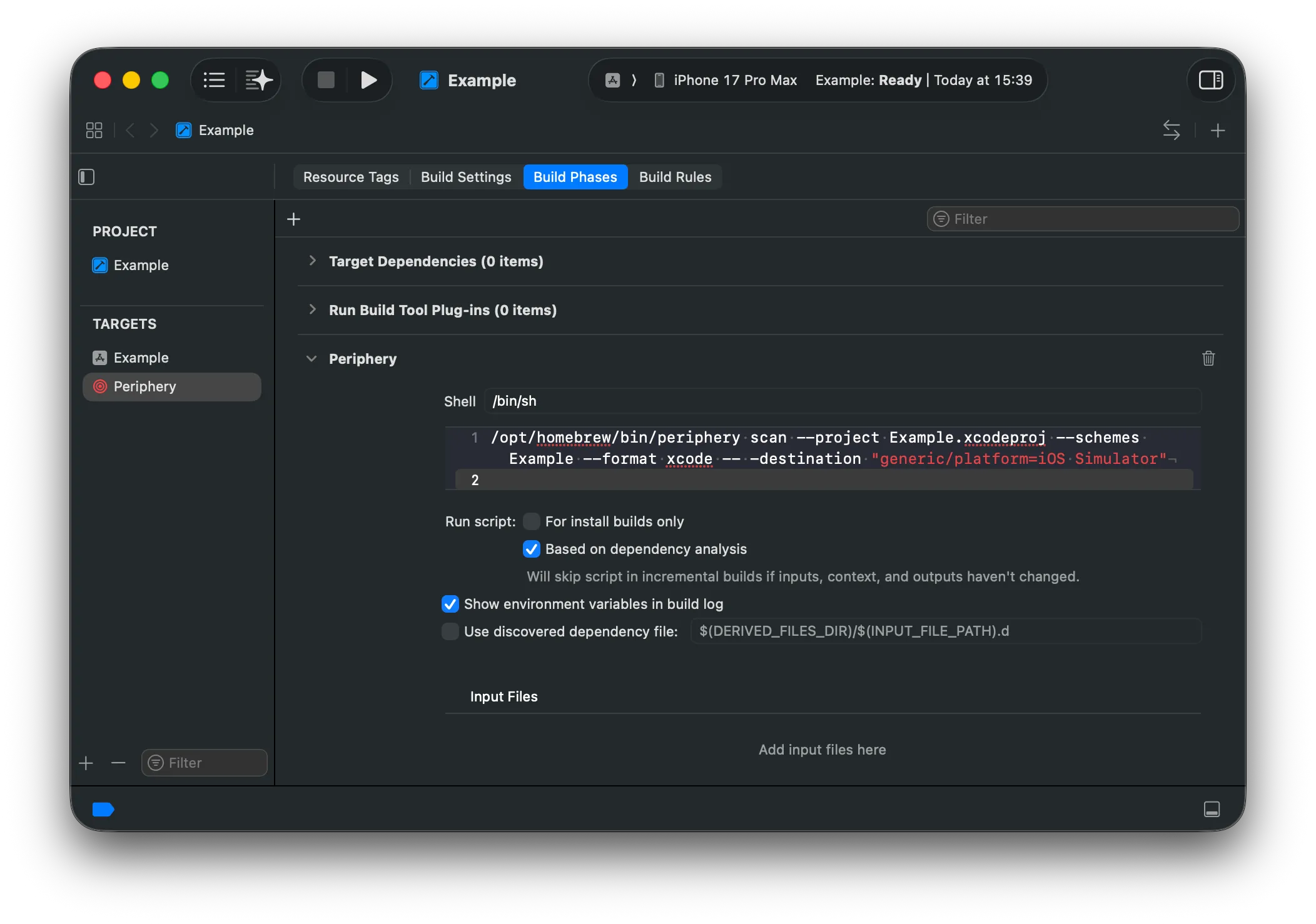

Copy and paste your Periphery command into the script input.

Tip

1. Include the --format xcode option to ensure results are always formatted so that Xcode can parse them.
2. Use the absolute path to periphery.

Step 3: Disable User Script Sandboxing

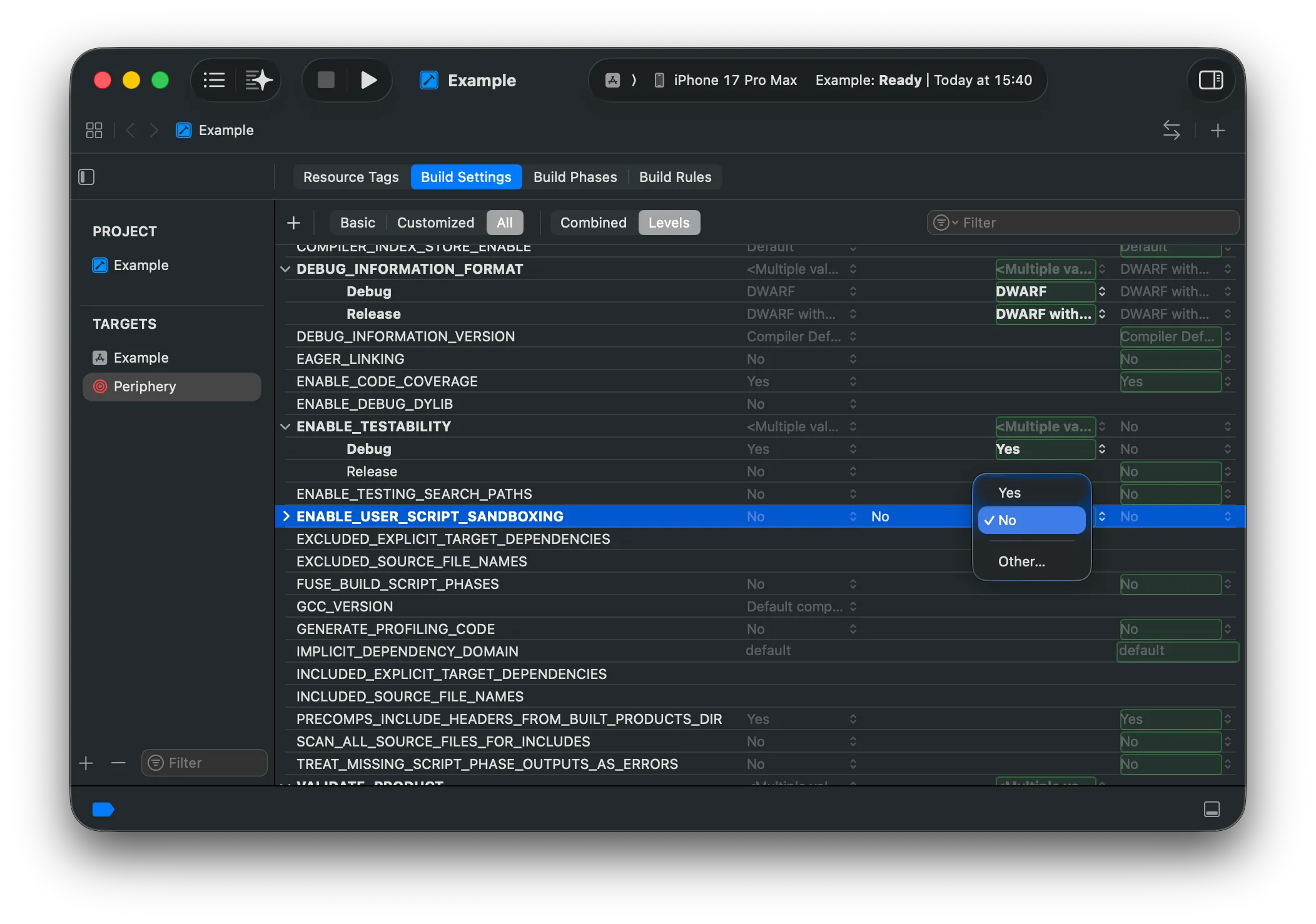

You must disable User Script Sandboxing for the Run Script phase. Periphery requires access to your project’s index store and source files, which are blocked by Xcode’s default sandbox. To disable sandboxing, set the ENABLE_USER_SCRIPT_SANDBOXING option to No in the Build Settings for the Periphery aggregate target.

Step 4: Select & Run

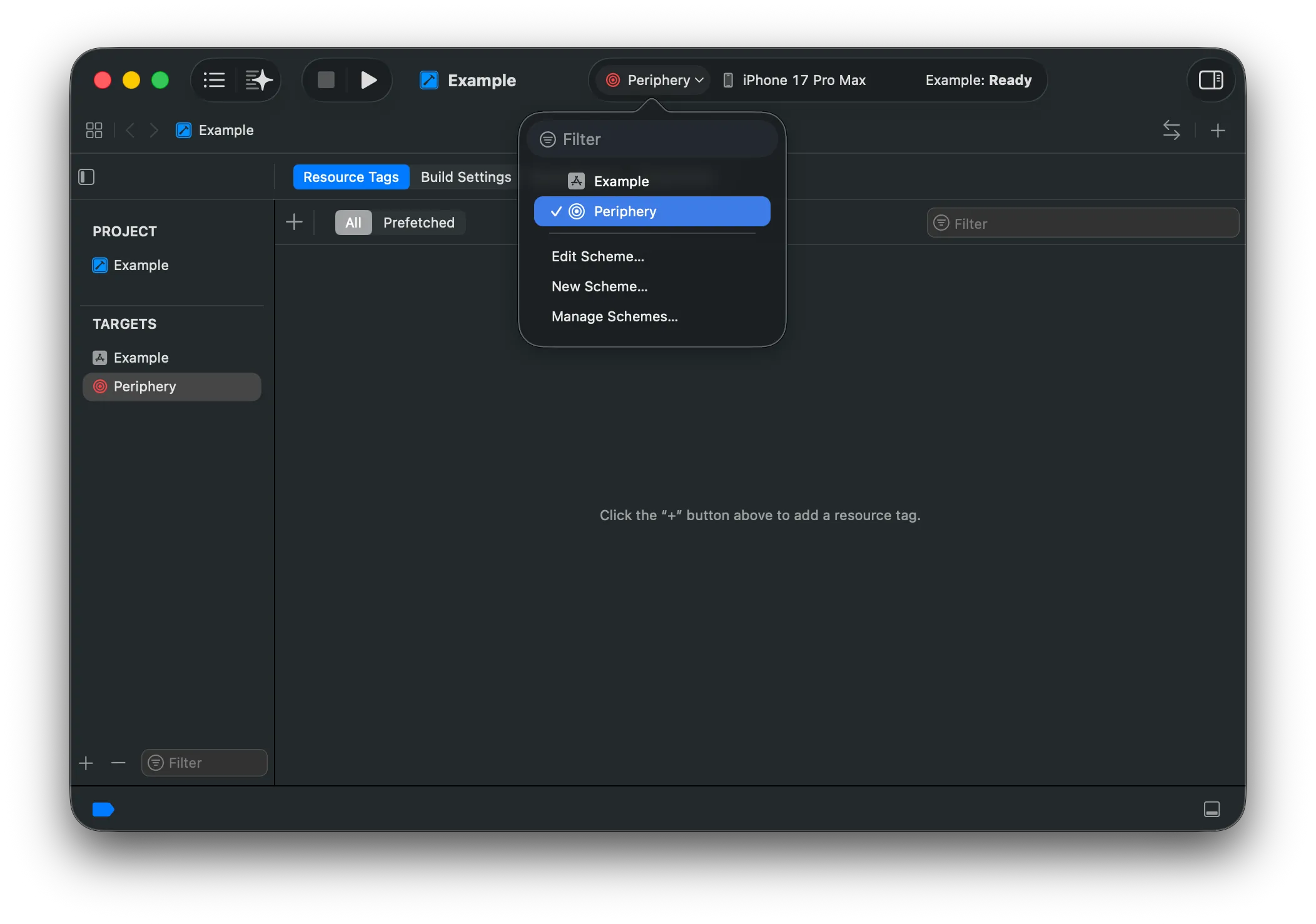

You’re ready to roll. You should now see the new scheme in the dropdown. Select it and hit run.

Tip

If you’d like others on your team to be able to use the scheme, you’ll need to mark it as Shared. This can be done by selecting Manage Schemes… and selecting the Shared checkbox next to the new scheme. The scheme definition can now be checked into source control.
